Arccaptain AIM-Forge Industrial Heavy-Duty 250A MIG Welder
Arccaptain AIM-Forge 250A Industrial Heavy-Duty MIG Welder
A 250A industrial multi-process welder engineered for continuous work and consistent performance. This industrial-grade machine delivers stable, continuous welding power with smooth dual-drive wire feeding, supports multiple welding processes and metals, and is designed for long-duty cycles with large wire spools and jobsite-ready mobility—making it a reliable solution for workshops, repair bays, and industrial job sites.
Features:
- 250A Industrial Output - Strong penetration and stable performance, welding steel plates up to 1/2" (13mm)
- Multi-Process Capability - Supports MIG, Flux-Cored, Stick, Lift TIG, and Spool Gun welding
- Dual-Drive Wire Feeding - Smooth and consistent wire delivery with adjustable 118-669 IPM speed
- Precision Arc Control - Adjustable inductance, burn-back control, and digital display
- Continuous Duty Design - Supports 15kg/20kg wire spools with integrated mobility

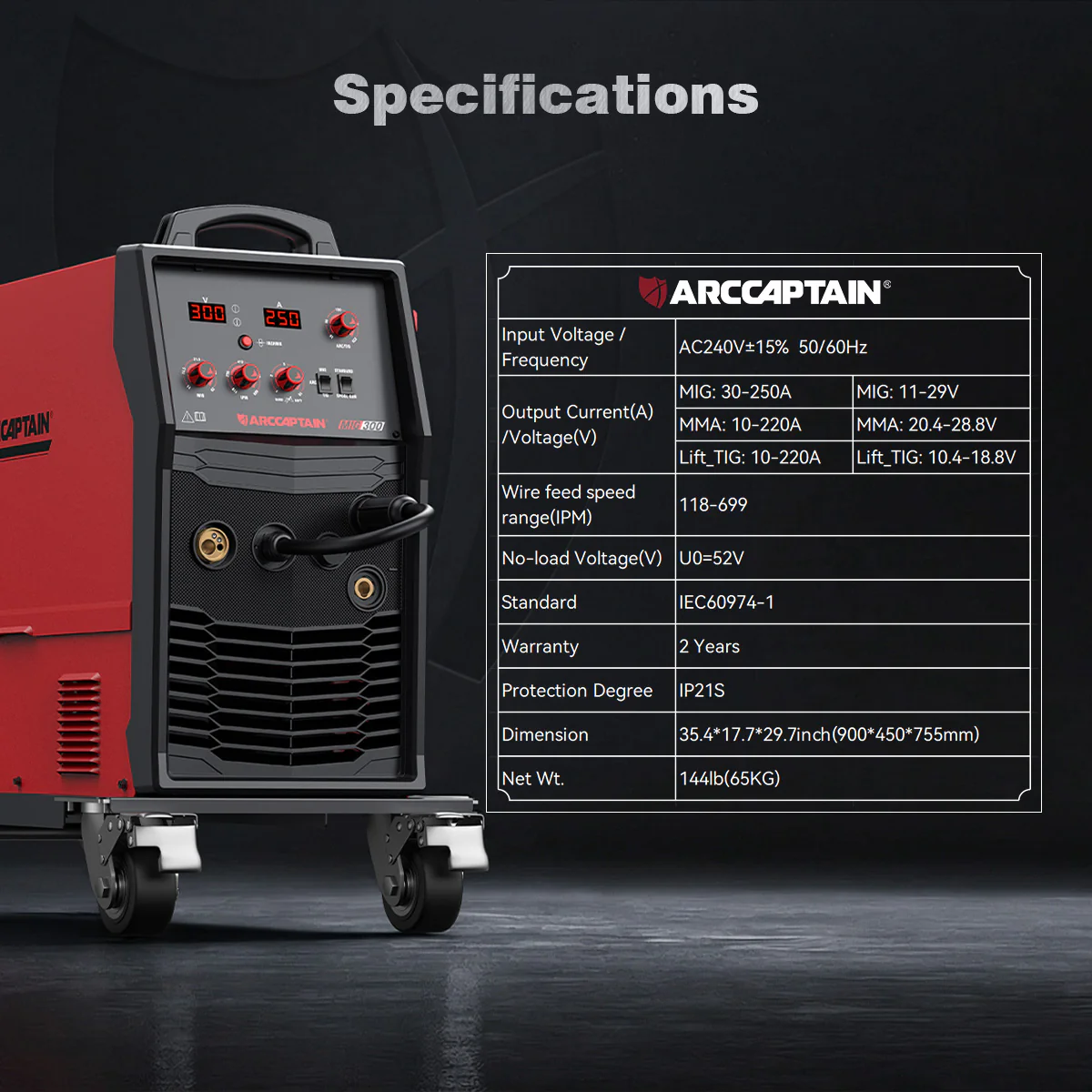

Technical Specifications
What's in the Box
Compatibility & Tips
Power Requirements
Requires 240V single-phase input (high-power industrial machine)
Supported Welding Processes
Gas MIG (solid wire), Gasless MIG (flux-cored wire), Lift TIG, MMA/Stick welding
Wire Spool Compatibility
Large internal wire bay accommodates 5kg, 15kg, and 20kg wire spools. Supports switching between small portable rolls and heavy-duty industrial spools.
Spool Gun for Aluminum
Machine features dedicated connector and switch for Spool Gun compatibility. Spool Gun is not included and must be purchased separately.
Maximum Welding Thickness (Single Pass)
| Material | Thickness |
|---|---|
| Stainless Steel | 10mm |
| Cast Iron | 12mm |
| Aluminum (with spool gun) | 8mm |
| Copper & Brass | 6mm |
| Steel Plates | Up to 10mm (3/8") |
Versatile Applications
Metal Fabrication
For 2-10mm steel plates, heavy-duty frames, equipment bases, industrial cabinets
Automotive Repair
For 3-6mm carbon steel, frame reinforcement, exhaust brackets, bumpers
On-Site Construction
For thin sheets to 10mm plates, outdoor environments
Vessel Repair
For 3-8mm marine-grade steel, hull repairs
