ARCCAPTAIN ARC205 PRO Stick Welder: Power Meets Precision

The ARCCAPTAIN ARC205 PRO Stick Welder is packed with advanced features that make welding easier, faster, and more efficient. Whether you're a beginner or a seasoned pro, this welder delivers consistent, high-quality results for a wide range of applications.

Features:

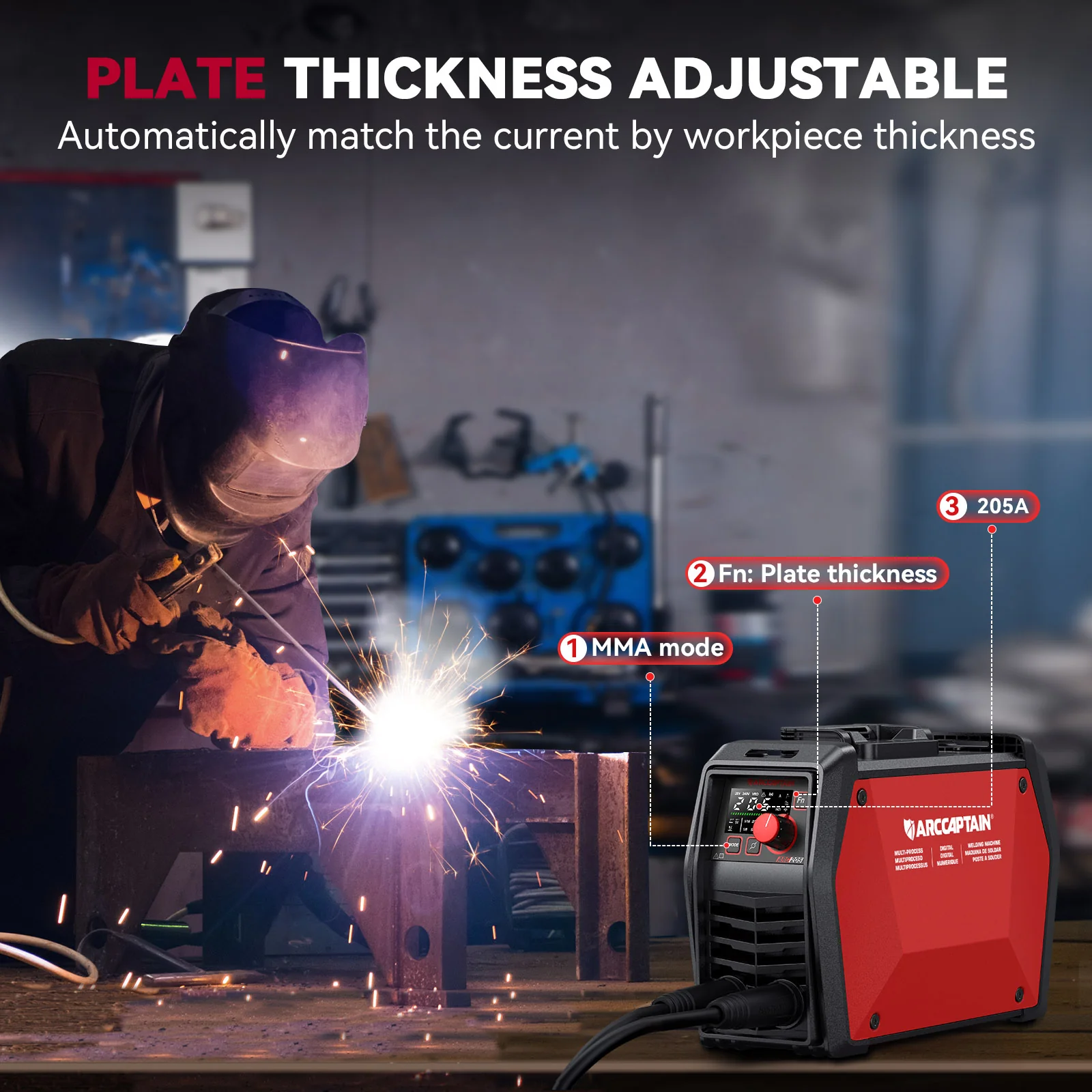

• SYN Simplification: Simply select the welding rod diameter, and the machine automatically adjusts the current for optimal performance. This user-friendly feature ensures perfect welds every time, making it ideal for all skill levels.
• MCU Control & IGBT Inverter Technology: Enjoy precise control over welding parameters with MCU technology, while IGBT inverter technology ensures stable, reliable performance even in tough conditions.
• Bluetooth App Connectivity: Adjust settings on the go with the mobile app, giving you real-time control and flexibility whether you're in the workshop or on-site.
• Dual Welding Modes: Supports both MMA (Stick) and LIFT TIG welding, making it versatile enough for heavy-duty construction or detailed metalwork.
• Intelligent Cooling System: Customized air ducts reduce noise and energy consumption while efficiently dissipating heat, ensuring the machine stays cool during long welding sessions.

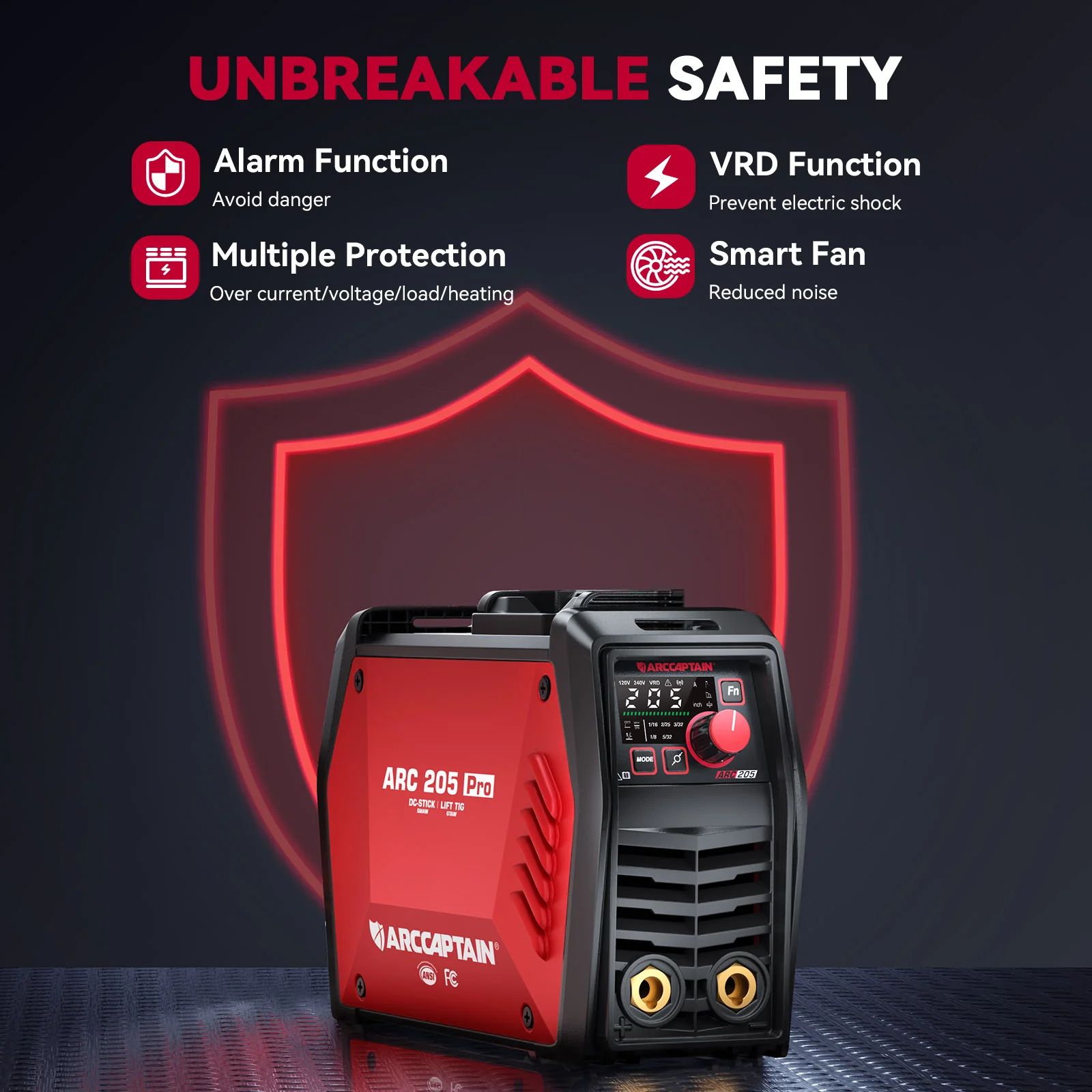

• Triple Protection Design: Reduces the risk of malfunctions by 70%, with added safety features like VRD, overcurrent, overvoltage, overload, and overheat protection.
• Lightweight & Portable: Weighing just 8.30 lbs, the ARC205 PRO is easy to carry and perfect for both home projects and remote job sites.

Why Choose the ARC205 PRO?

• Effortless Operation: The SYN Simplification feature takes the guesswork out of welding, delivering consistent results with minimal setup.
• Smart Control: Bluetooth app connectivity lets you adjust settings remotely, boosting productivity and flexibility.
• Built to Last: Advanced cooling and triple protection ensure durability and safety, even in demanding environments.
• Versatile Performance: Tackle a wide range of projects with MMA and LIFT TIG welding modes.

Whether you're working on a construction site or tackling DIY projects at home, the ARCCAPTAIN ARC205 PRO Stick Welder combines power, precision, and portability to make it the ultimate welding tool for professionals and hobbyists alike.

Technical Parameters

TECHNICAL PARAMETERS	Units	Model
		ARC205 Pro
Rated input voltage	V	AC 120V ±15%   50/60HZ	AC 240V ±15%   50/60HZ
Rated input power	kVA	6	9.4
Welding current range（MMA)	A	20-150	20-205
	V	20.8-26.0	20.8-28.2
Welding current range（TIG)	A	20-150	20-205
	V	10.8-16.0	10.8-18.2
Hot start current range	A	0~60A
ARC force current range	A	0~100A
Rated duty cycle	-	60%
No-load voltage	V	85
VRD voltage	V	12
Overall efficiency	-	80%
Protection grade	-	IP21S
Power factor	-	COSφ=0.7
Insulation grade	-	H
Standard	-	ANSI/NEMA/IEC 60974-1
Dimensions L*W*H	Inch	12.88*5.05*8.4
	mm	327*128*213mm
Net weight	Lb	8.30
	KG	3.76
Applicable electrode	Inch/ mm	1/16"-1/8" 1.6-3.2	1/16"-5/32" 1.6-4.0

Welding Parameters

Electrode Diameter mm(inch)	Plate thickness mm  (inch)	Recommended Welding Current(A)	Recommended welding voltage(V)
1.6mm 1/16	1~2.5mm 0.04~0.11	30~65	21.2~22.8
2mm 2/25	2.3~4mm 0.9~0.16	49~94	21.6~23.6
2.4mm 3/32	3.5~4.5mm 0.14~0.18	78~123	22~24
3.2mm 1/8	4.8~8.3mm 0.19~0.33	99~177	22.8~26
4.0mm 5/32	8.6~10mm 0.34~0.39	178~205	25.6~27.2

LIFT TIG Welding Parameters

Electrode diameter mm  (inch)	Plate thickness mm  (inch)	Welding current(A)	Gas flow(L/min)
1mm 1/32	1mm 0.04”	20~50	5
1mm 1/32	2mm 0.08”	51~80	6
1.6mm 1/16	3mm 0.12”	81~120	7
1.6mm 1/16	4mm 0.16”	121~165	8
2.4mm 3/32	5mm 0.20”	166~205	9
