ARCCAPTAIN CUT55 Pro Plasma Cutter: Power, Precision, and Smart Control

The ARCCAPTAIN Cut55 Pro Plasma Cutter is built to handle tough cutting jobs with ease, slicing through materials up to 1/2 inch thick and achieving maximum cuts of  12/16" inch. Whether you're working on clean or rough surfaces, this tool delivers precision and efficiency every time.

Features:

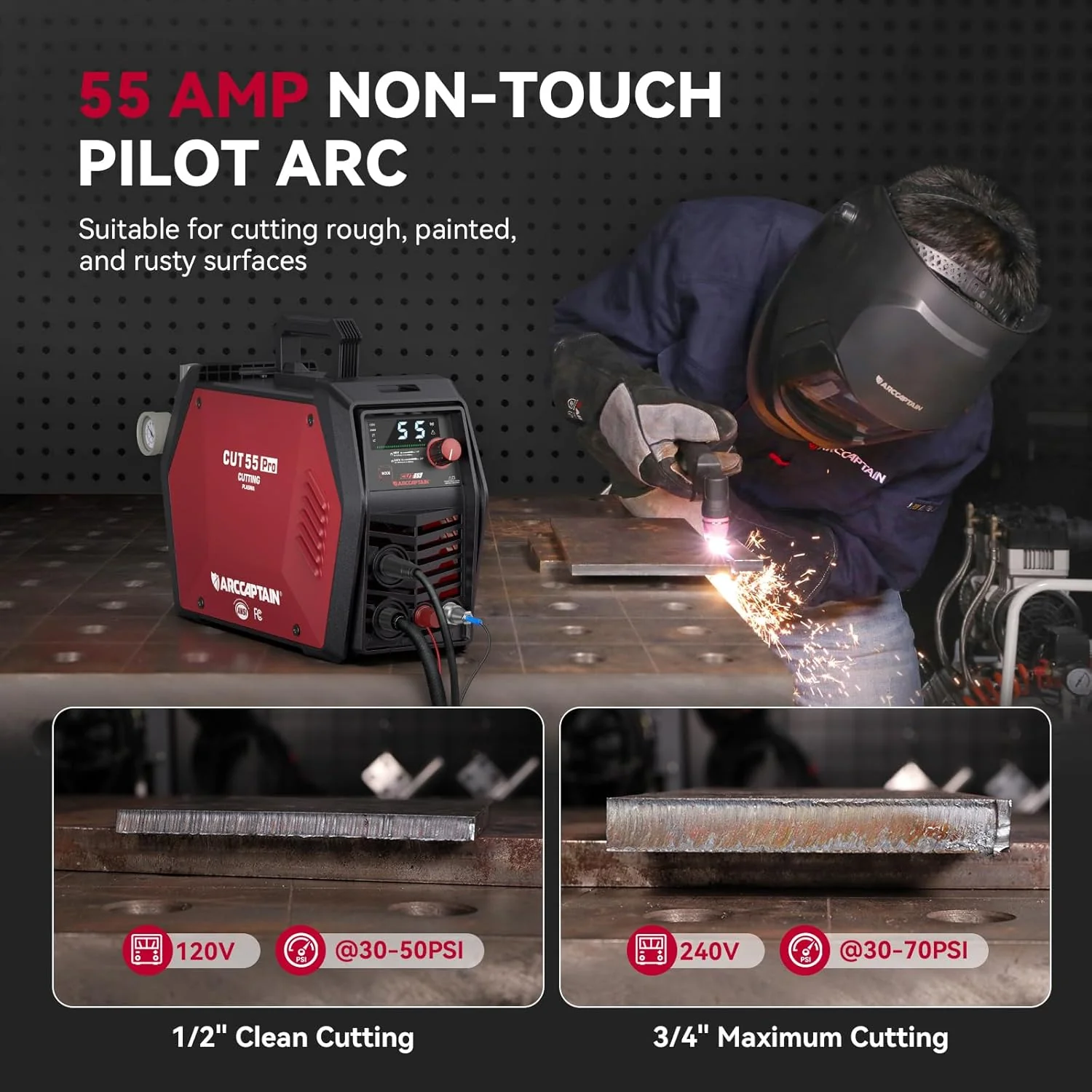

• Pilot Arc Technology: Starts the arc without direct contact, making it perfect for cutting through dirty, rusty, or coated steel while maintaining clean, high-quality results.
• Bluetooth App Connectivity: Control and maintain your machine with ease. The app allows for firmware updates, ensuring peak performance and stability over time—ideal for both beginners and pros.
• 2T/4T Modes: Switch between quick cuts and continuous operation for maximum flexibility.
• Smart Post-Flow Function: Automatically adjusts cooling based on cutting current, reducing wear and tear and extending the machine’s lifespan.

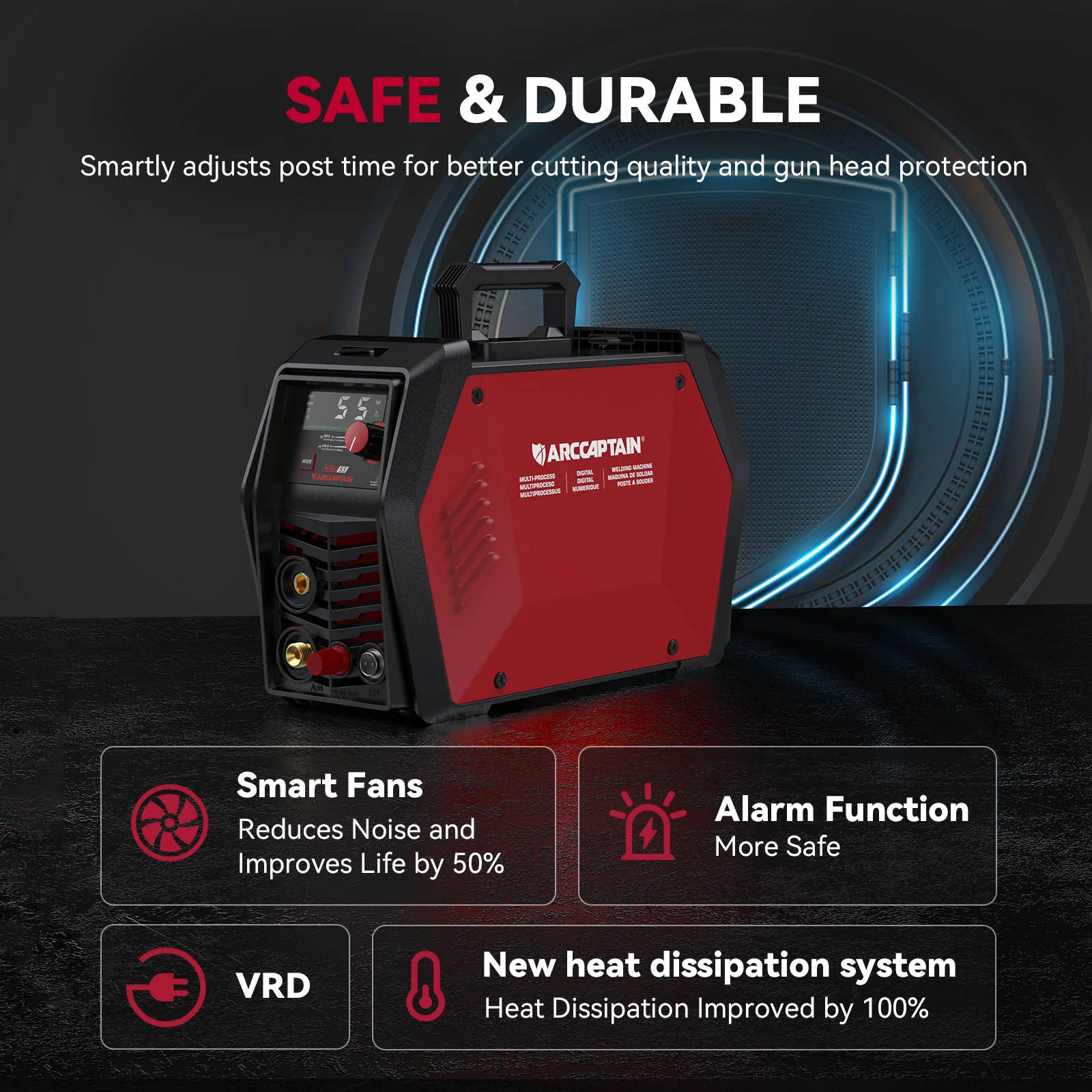

• Durable & Safe Design: Equipped with an intelligent fan and advanced cooling system to prevent overheating. Triple protection against water, dust, and corrosion reduces failure risk by up to 70%, ensuring long-lasting reliability.

The Cut55 Pro combines cutting-edge technology, durability, and smart features to make it the ultimate tool for any metalworking project.

Technical parameters

Model	CUT55 Pro
Rated input power supply	AC 220V 50/60Hz	AC 120V 50/60Hz
Rated input capacity (kVA)	9.4	5.5
Power factor	0.7
Rated output (A/V)	55/102	35/94
Rated duty cycle (%)	60	60
No-load voltage (V)	330V
Output current range (A)	20~55	20~35
Arc ignition mode	Poilt ARC/ NON-Touch
Post-flow time (s)	5
Gas pressure range (Mpa)	0.2~0.5Mpa 29~72psi
Insulation grade	H
Cooling mode	Air cooling
Enclosure ingress protection	IP21S
Efficiency (%)	85
Dimensions(L*W*H)	17.8 in*9.6 in*6.1 in 452*244*154 mm
Weight (lb)	11.5lb/5.2kg
