Arccaptain AC DC TIG200P Multi Process Pulse TIG Aluminum Welder
ARCCAPTAIN TIG200P AC/DC Pulse Welder – Precision Meets Power
Professional-Grade Versatility: Weld aluminum, steel, stainless steel, copper, and more with ease. The TIG200P supports AC/DC TIG (with adjustable square/triangle/pulse waveforms) and Stick welding up to 160A, perfect for delicate projects or heavy-duty repairs.
- Start welding in a flash: arc ignition speeds up to 5x faster (40ms vs. 200ms) with a 99.99% success rate
- Reduced tungsten damage and ultra: stable arc for cleaner, stronger welds
-
Digital control ensures whisper: quiet operation and consistent performance
Smart Waveforms for Flawless Results
- Pulse/Square/Triangle modes prevent burn-through, minimize warping, and create pro-quality bead finishes
- Square wave AC crushes aluminum oxide for cleaner welds and better arc control
Built for Real-World Convenience
- Lightweight & portable: Just 26.5 lbs (12 kg) for jobsite mobility

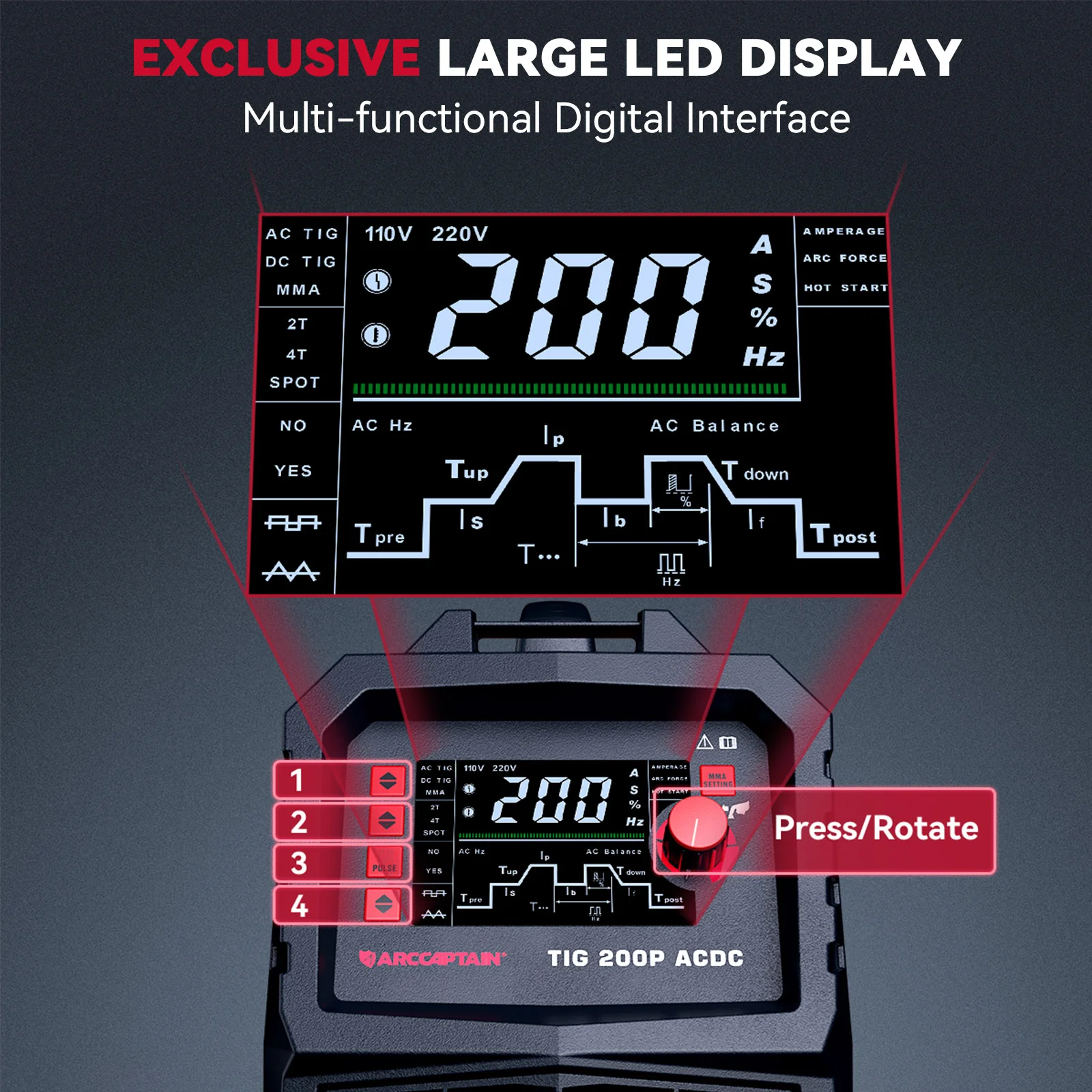

- Large LED display with intuitive controls: Adjust pre-flow, slope timing, crater fill, and more in seconds
-
Flexible control options: Use the handheld torch (2T/4T/spot modes) or add a foot pedal (sold separately)

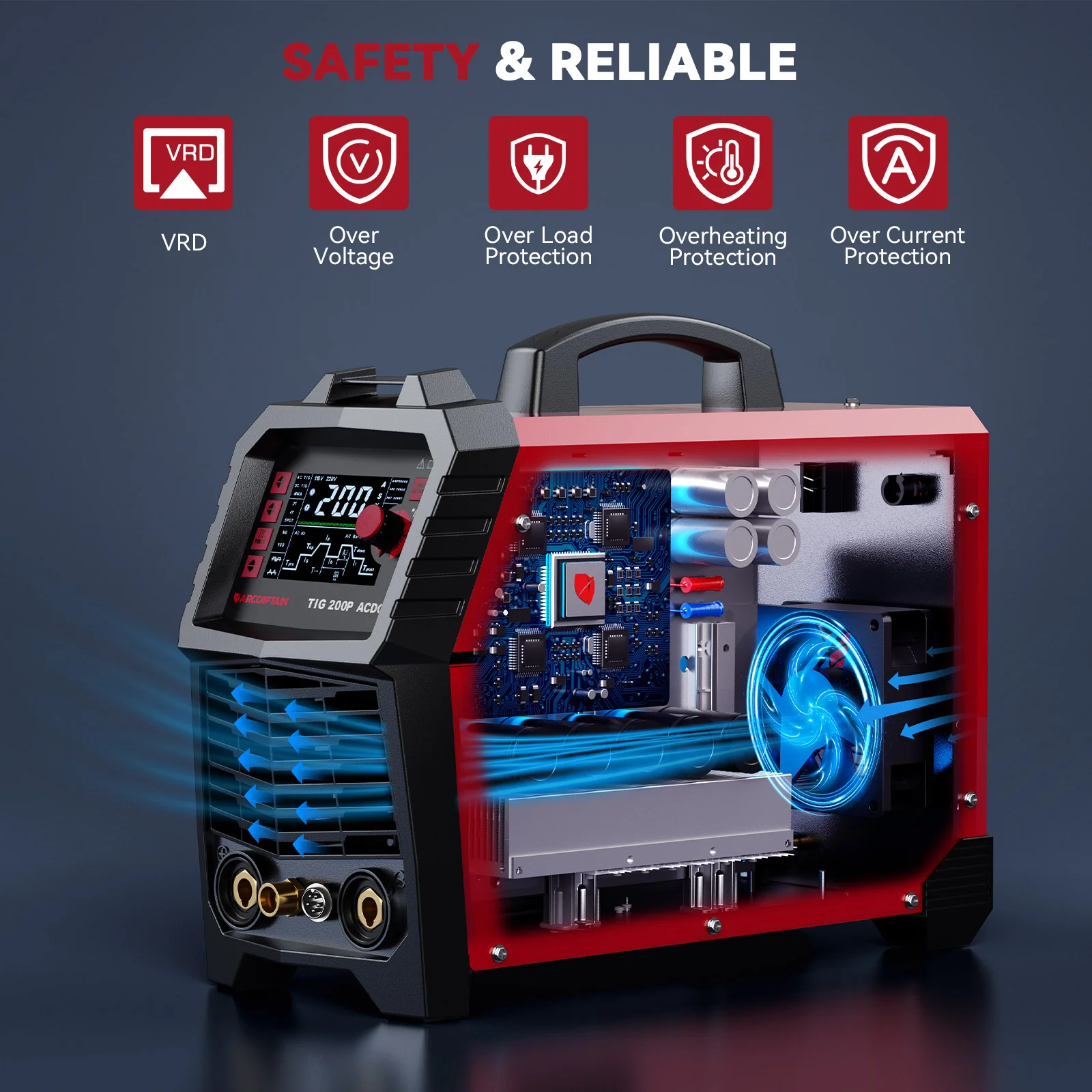

Safety You Can Trust
Auto-shutdown protection against overheating, voltage spikes, and overloads. VRD (Voltage Reduction Device) keeps you safe during electrode changes.
|
Project Name |
Unit |
Value |
||
|
Power voltage |
VAC |
AC110V±15% AC220V±15% |
|
|
|
Input frequency |
Hz |
50 |
||
|
Rated input current |
A |
33@TIG 35@MMA |
||
|
Capacity of power supply |
KVA |
6.0@TIG 7.5@MMA |
||
|
Output current range (TIG) |
A |
10~120(110 v) 10~200 (220v) |
|
|
|
Output current range (MMA) |
A |
10~110(110v) 10~160(220v) |
|
|
|
Arc force range |
A |
0~40 |
||
|
Hot start current range |
A |
0~80 |
||
|
No-load voltage |
V |
60 |
||
|
Rated working voltage |
V |
18@TIG 26.4@MMA |
||
|
AC output frequency |
Hz |
20~250 |
||
|
AC balance |
% |
20~60 |
||
|
Background level |
A |
10~200 |
||
|
Pulse frequency |
Hz |
0.5~200 (DC) 0.5~25(AC) |
||
|
Pulse duty factor |
% |
5~95 |
||
|
Pre-flow time |
S |
0~5 |
||
|
Post-flow time |
S |
0~15 |
||
|
Rising time |
S |
0~15 |
||
|
Fall time |
S |
0~15 |
||
|
Remote control |
- |
Yes |
||
|
Arc start mode |
- |
HF arc starter |
||
|
Efficiency (%) |
% |
80 |
||
|
Duty cycle (%) |
% |
TIG: 200@25% - MMA: 160@25% |
||
|
Power factor |
- |
0.70 |
||
|
Type of cooling |
- |
Air cooled |
||
|
Working temperature range |
°C |
-10~+40 |
||
|
Storage temperature range |
°C |
-25~+55 |
||
|
Protection class |
- |
IP21S |
||
|
Insulation class |
- |
B |
||
ARCCAPTAIN TIG200P AC/DC Pulse Welder – Precision Meets Power
Professional-Grade Versatility: Weld aluminum, steel, stainless steel, copper, and more with ease. The TIG200P supports AC/DC TIG (with adjustable square/triangle/pulse waveforms) and Stick welding up to 160A, perfect for delicate projects or heavy-duty repairs.
- Start welding in a flash: arc ignition speeds up to 5x faster (40ms vs. 200ms) with a 99.99% success rate
- Reduced tungsten damage and ultra: stable arc for cleaner, stronger welds
-
Digital control ensures whisper: quiet operation and consistent performance
Smart Waveforms for Flawless Results
- Pulse/Square/Triangle modes prevent burn-through, minimize warping, and create pro-quality bead finishes
- Square wave AC crushes aluminum oxide for cleaner welds and better arc control
Built for Real-World Convenience
- Lightweight & portable: Just 26.5 lbs (12 kg) for jobsite mobility
- Large LED display with intuitive controls: Adjust pre-flow, slope timing, crater fill, and more in seconds
-
Flexible control options: Use the handheld torch (2T/4T/spot modes) or add a foot pedal (sold separately)
Safety You Can Trust
Auto-shutdown protection against overheating, voltage spikes, and overloads. VRD (Voltage Reduction Device) keeps you safe during electrode changes.
|
Project Name |
Unit |
Value |
||
|
Power voltage |
VAC |
AC110V±15% AC220V±15% |
|
|
|
Input frequency |
Hz |
50 |
||
|
Rated input current |
A |
33@TIG 35@MMA |
||
|
Capacity of power supply |
KVA |
6.0@TIG 7.5@MMA |
||
|
Output current range (TIG) |
A |
10~120(110 v) 10~200 (220v) |
|
|
|
Output current range (MMA) |
A |
10~110(110v) 10~160(220v) |
|
|
|
Arc force range |
A |
0~40 |
||
|
Hot start current range |
A |
0~80 |
||
|
No-load voltage |
V |
60 |
||
|
Rated working voltage |
V |
18@TIG 26.4@MMA |
||
|
AC output frequency |
Hz |
20~250 |
||
|
AC balance |
% |
20~60 |
||
|
Background level |
A |
10~200 |
||
|
Pulse frequency |
Hz |
0.5~200 (DC) 0.5~25(AC) |
||
|
Pulse duty factor |
% |
5~95 |
||
|
Pre-flow time |
S |
0~5 |
||
|
Post-flow time |
S |
0~15 |
||
|
Rising time |
S |
0~15 |
||
|
Fall time |
S |
0~15 |
||
|
Remote control |
- |
Yes |
||
|
Arc start mode |
- |
HF arc starter |
||
|
Efficiency (%) |
% |
80 |
||
|
Duty cycle (%) |
% |
TIG: 200@25% - MMA: 160@25% |
||
|
Power factor |
- |
0.70 |
||
|
Type of cooling |
- |
Air cooled |
||
|
Working temperature range |
°C |
-10~+40 |
||
|
Storage temperature range |
°C |
-25~+55 |
||
|
Protection class |
- |
IP21S |
||
|
Insulation class |
- |
B |
||
Original: $942.99
-65%$942.99
$330.05Description
ARCCAPTAIN TIG200P AC/DC Pulse Welder – Precision Meets Power
Professional-Grade Versatility: Weld aluminum, steel, stainless steel, copper, and more with ease. The TIG200P supports AC/DC TIG (with adjustable square/triangle/pulse waveforms) and Stick welding up to 160A, perfect for delicate projects or heavy-duty repairs.
- Start welding in a flash: arc ignition speeds up to 5x faster (40ms vs. 200ms) with a 99.99% success rate
- Reduced tungsten damage and ultra: stable arc for cleaner, stronger welds
-
Digital control ensures whisper: quiet operation and consistent performance
Smart Waveforms for Flawless Results
- Pulse/Square/Triangle modes prevent burn-through, minimize warping, and create pro-quality bead finishes
- Square wave AC crushes aluminum oxide for cleaner welds and better arc control
Built for Real-World Convenience
- Lightweight & portable: Just 26.5 lbs (12 kg) for jobsite mobility
- Large LED display with intuitive controls: Adjust pre-flow, slope timing, crater fill, and more in seconds
-
Flexible control options: Use the handheld torch (2T/4T/spot modes) or add a foot pedal (sold separately)
Safety You Can Trust
Auto-shutdown protection against overheating, voltage spikes, and overloads. VRD (Voltage Reduction Device) keeps you safe during electrode changes.
|
Project Name |
Unit |
Value |
||
|
Power voltage |
VAC |
AC110V±15% AC220V±15% |
|
|
|
Input frequency |
Hz |
50 |
||
|
Rated input current |
A |
33@TIG 35@MMA |
||
|
Capacity of power supply |
KVA |
6.0@TIG 7.5@MMA |
||
|
Output current range (TIG) |
A |
10~120(110 v) 10~200 (220v) |
|
|
|
Output current range (MMA) |
A |
10~110(110v) 10~160(220v) |
|
|
|
Arc force range |
A |
0~40 |
||
|
Hot start current range |
A |
0~80 |
||
|
No-load voltage |
V |
60 |
||
|
Rated working voltage |
V |
18@TIG 26.4@MMA |
||
|
AC output frequency |
Hz |
20~250 |
||
|
AC balance |
% |
20~60 |
||
|
Background level |
A |
10~200 |
||
|
Pulse frequency |
Hz |
0.5~200 (DC) 0.5~25(AC) |
||
|
Pulse duty factor |
% |
5~95 |
||
|
Pre-flow time |
S |
0~5 |
||
|
Post-flow time |
S |
0~15 |
||
|
Rising time |
S |
0~15 |
||
|
Fall time |
S |
0~15 |
||
|
Remote control |
- |
Yes |
||
|
Arc start mode |
- |
HF arc starter |
||
|
Efficiency (%) |
% |
80 |
||
|
Duty cycle (%) |
% |
TIG: 200@25% - MMA: 160@25% |
||
|
Power factor |
- |
0.70 |
||
|
Type of cooling |
- |
Air cooled |
||
|
Working temperature range |
°C |
-10~+40 |
||
|
Storage temperature range |
°C |
-25~+55 |
||
|
Protection class |
- |
IP21S |
||
|
Insulation class |
- |
B |
||
